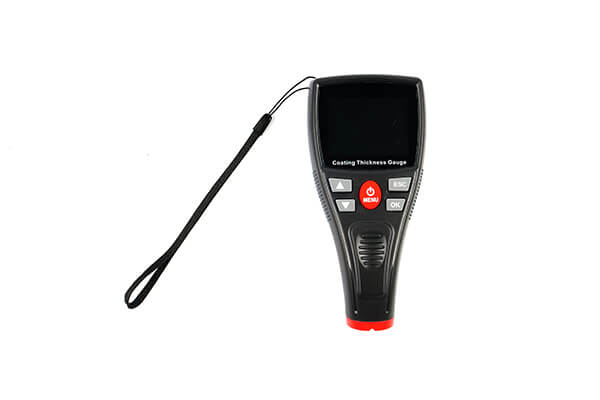

Coating Thickness Gauge-CTG02

Coating Thickness Gauge-CTG02

Model:CTG02

Three calibration modes: basic, offset, zero calibration.
Single measurement & continuous measurement modes.
Metric/imperial unit
Storage function. Readings can be stored, recalled and deleted.
LCD shows Min/Max/ Avg /Dif/ Sdev/ CV%;
(Measured Values and Statistics)
Dif: Difference value compared to the last measurement
Avg: Average value
Max: Maximum value
Min: Minimum value
High: High limit
Low: Low limit
Sdev: Standard deviation
CV%: Coefficient of variationScreen rotation, charge protection, screen brightness selection.
V-groove in probe for positioning on curved parts .
Hi / Low alarm audibly and visibly alerts when measurements exceed user-specified limits.
Readings can be stored, recalled and deleted . The storage space is divided into 100 storage areas . Each storage area can store up to 15 data.

Product Introduction

Description

LARGE 2.3 inch Color-screen

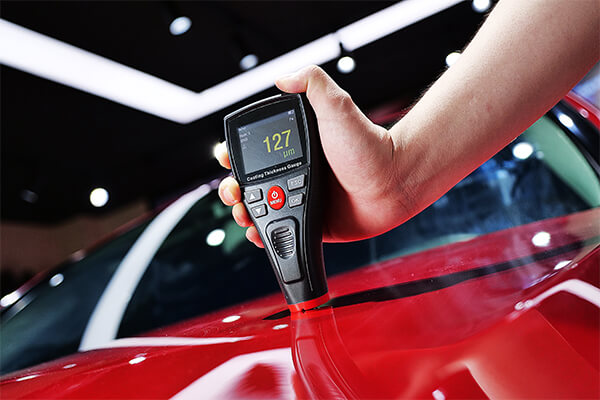

Maxshine Coating Thickness Gauge is equipped with a Large 2.3 inch high-definition HD color-screen(45x35mm). Easy to read measurements at all angles with High contrast LCD , backlit display, Adjustable display brightness , and with Auto rotating display option.

Auto F/NF Probe
Integral F/NF probe with Automatic substrate detection can Measure both non-magnetic coatings on steel AND non-conductive coatings on aluminum, brass, etc

USB Charging Port

USB Port on top of device for charging the rechargeable batteries

charger ( Type A plug socket) and USB charging cable is included

Data browsing View

Maxshine Coating Thickness Gauge paint thickness gauge with data browsing view option, displays selected unit, average value, and the number of saved data

The data column above or below alarm value is red.

Technical Specifications



Measurement

Range

Measurement

Error

Minimum Thickness Of

Metal Substrat

Size Weight
0~1500um

0~59mil

0~1.5mm

≤150μm ±5μm

>150μm ±(3%H+1μm)

0.5mm 70.30*38.6*149.59 mm

2.7*1.5*5.88 inch

100 grams

Measured Values Bar Graph

The bar graph shows the proportion of the measured value in the measurement range.

The bar chart shows the high and low limits in Green and Red colors.



Measured values trend chart

The trend chart below is the trend of the last 20 groups of data.



Packing List

Coating Thickness Gauge with internal F/NF probe

Battery charger ( Type A plug socket)  and USB charging cable

Ferrous substrate

Non-ferrous substrate

Standard foils (6 pcs)

User Manual in English

Hard Carrying case
