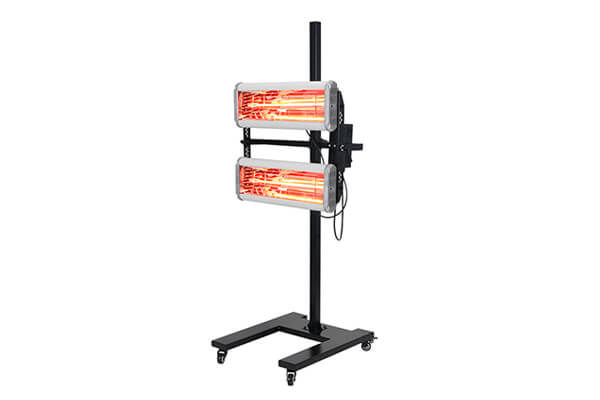

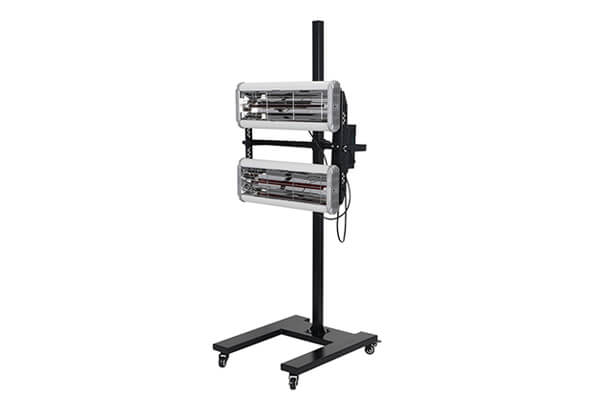

SWIR High Frequency Shortwave Infrared Paint Curing Heaters-2400W
Model : MS-2400W

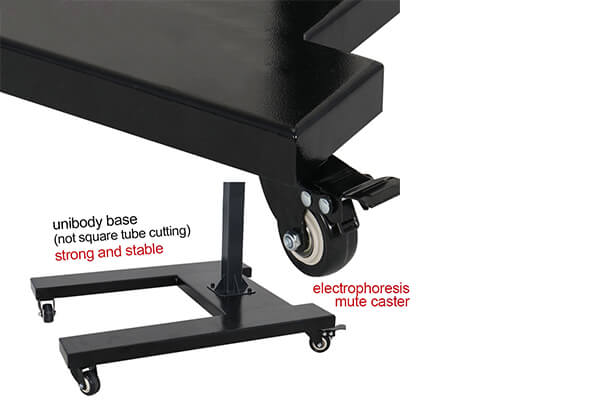

Splicing stand:More convenient when transport
SWIR high frequency shortwave infrared Paint curing heaters use to dry car paint and coatings.
-Technical Detail:
-Temperature rising time: 5-15 min
-Drying time for different coating:
-Putty: 8-10 min
-Base Coat: 8-15 min
-Main Coat: 15-20 min
-Clear Coat: 8-10 min
-Baking Area: 400 X 500mm
-Baking Distance: 0.5-0.8m
-Input voltage: 110v/220v
-Gross Weight: 19.6kg
-Liquid pressure lifter, lamp

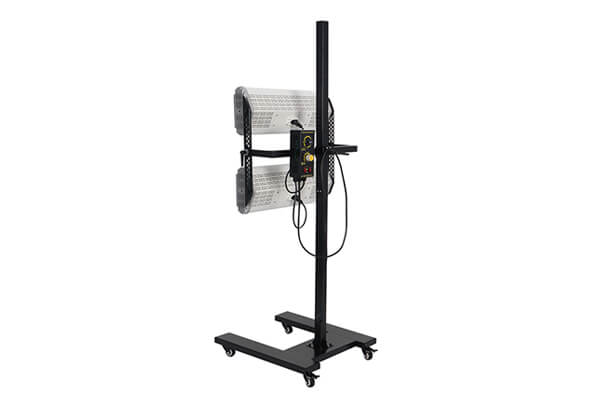

-Body 360 degrees turning, auto matical alarm ring

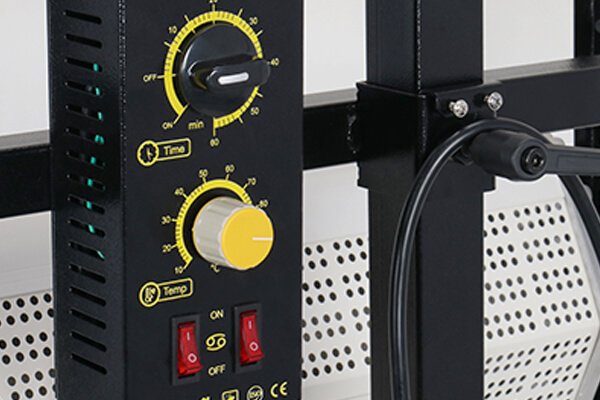

-Independent control of each light,
-Overload safety protected.
Product Introduction
Description
Short Wave Infrared Heater transmits heat in the form of electromagnetic waves at a velocity of approximately 3,00,000 Km/Sec i.e., at the speed of light.
These lamps are not only the fastest in transmitting heat but are most suitable for specific applications involving vacuum technology and dust free (clean room) conditions.
Infrared heat is particularly economical on energy compared to other heat sources because it acts quickly, directly on products. Short Wave Infrared heaters are suitable for all applications in which the attainment of high temperatures in the shortest possible time is what counts.
Technical Specifications
| SWIR High Frequency Shortwave Infrared Paint Curing Heaters-2400W | ||||||||
| Input Voltage | Baking Area | Maximum Power | Temperature | Timing Function | Color | Package | Single control | Net weight |
| 110v/220v | 1500*1500mm | 2400w | 0-100℃+ | 0-60 mins | White/Custom | 65*20*61cm | 1200w/2400w | 19kg |
